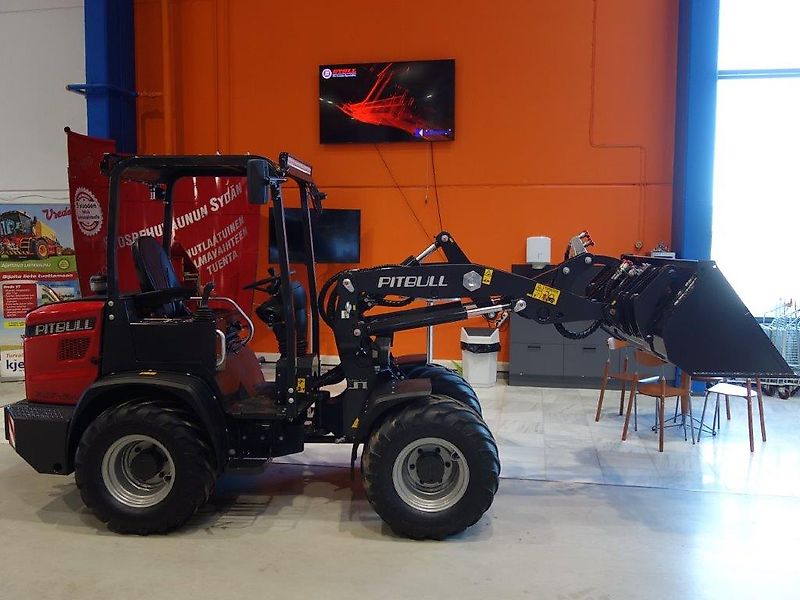

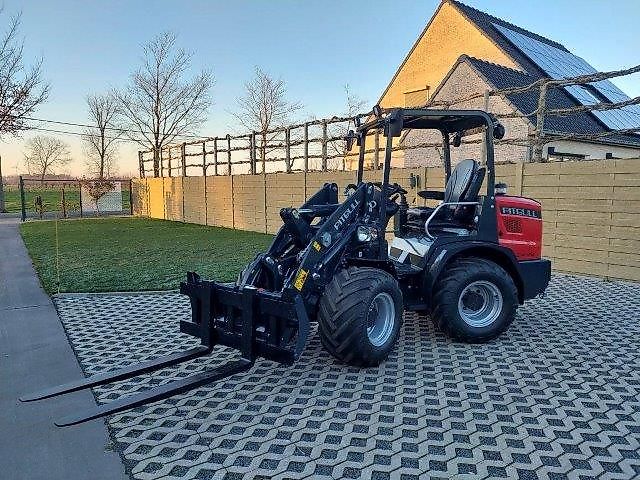

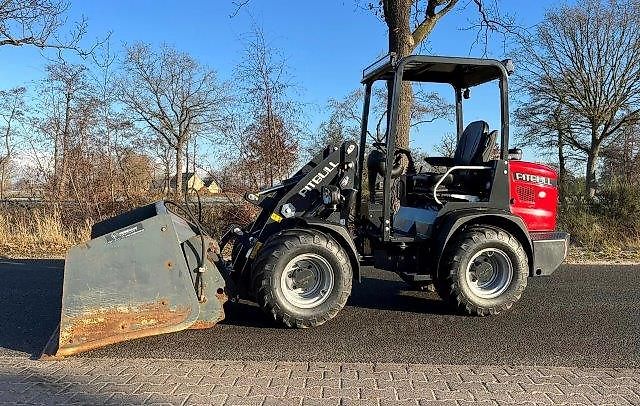

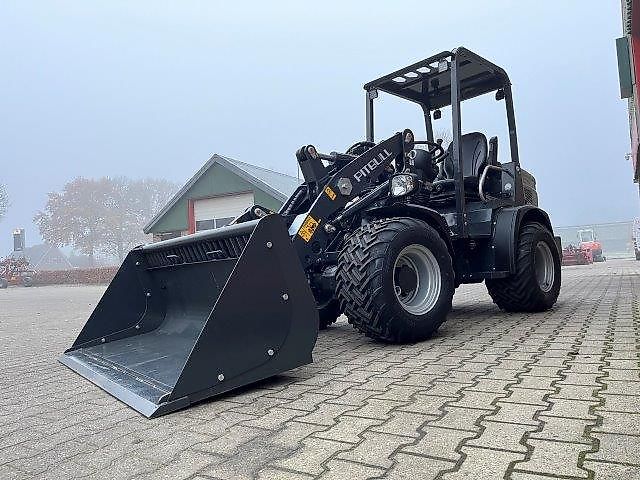

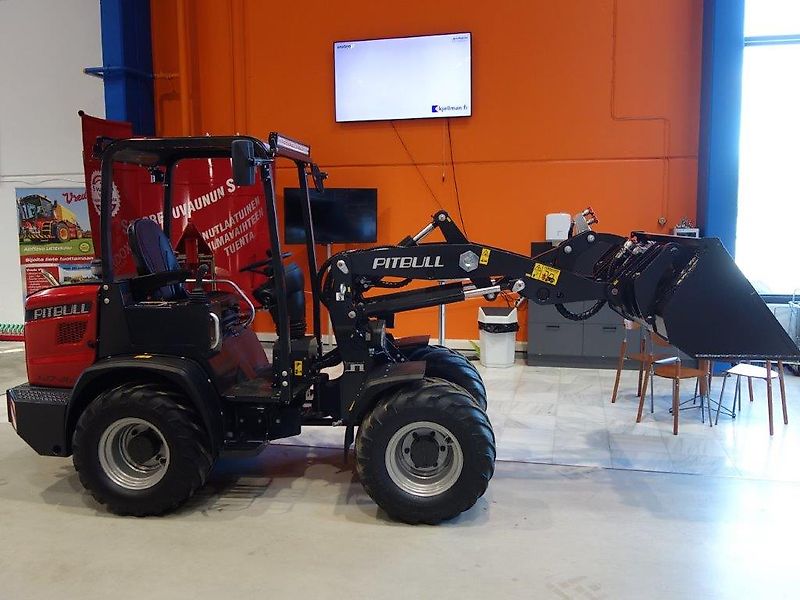

Pitbull Compact Loader X27-26V

Overige informatie

Huippu varusteltu esittelykone - heti toimitukseen

Tehokas 4 sylinterinen Kubota V1505 26 hv,
huoltoystävällinen kaikki suodattimet konepellin alla, jäykkä runkonivel =
erittäin vakaa kääntäessä, Rocking kelluva taka-akseli, sähköinen
seisontajarru. Öljykylpyjarrut, 45% lukko etu/taka akselille, 12 tn Dana Spicer akselit,
murtovoima ja vakaintoiminto, P-Z -nostopuomilla optimoitu Kardaaniakseli
levyjarrulla, 0 – 24 km/h, Euro pikakiinnityslevy, Renkaat Trelleborg 400/50-15
T463,
Pitbull Nopea versio 26 PS 450-908-084
Pitbull Ajovalot eteen 450-908-010
Pitbull LED Valopalkki eteen 450-908-008
Pitbull LED Valo/vilkku sarja taakse 450-908-011
Pitbull LED työvalot taakse 450-908-009
Pitbull Kombikoukku 450-908-015-002
Pitbull Peilit 450-908-012
Pitbull 12 v pistoke takana 450-908-016
Pitbull 3 ja 4 lohko 450-908-003-006
1 x maekaaninen ja 1 sähkö lohko
Pitbull vapaapalu 450-908-004-001
Pitbull Kauha 140 cm 450-908-037
Pitbull 3 lohkon pitotoiminto 450-908-044
Mitat:

Nostoteho 2300 k, Paino 2700 kg, Nostokorkeus
kauhalla 2830 mm, Korkeus 2200 mm, Pituus 3150 mm, Leveys 1450 mm, Akseliväli 1624 mm

Hydrauliikka:

Hydrauliikan öljyntuotto 50 l/min, 450 bar Linde vetohydrauliikkamoottori

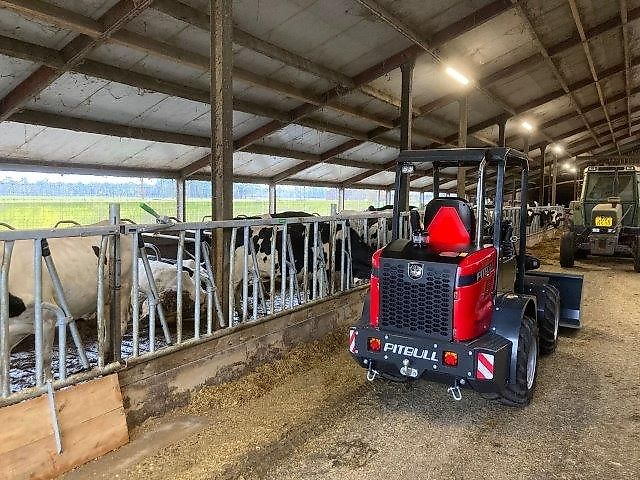

The most powerful, compact and safest of its kind The Pitbull Compact Loader is a unique product with extra attention for safety, quality and power. It’s a compact and very versatile machine - perfect for big jobs in small areas. PITBULL ? P-Z boom Due to the unique construction of the boom with a combination of P- and Z-kinematics the boom has a high breakout force and optimum parallel guidance. ? Rocking axle The rigid pivoting point in combination with the swiveling rear axle make the Pitbull very stable and suitable for working on uneven surfaces. ? Axles The very srong 12.000 kg Dana Spicer axles are able to carry over 3 times the weight of the Pitbull. This provides maximum capacity and an extended lifetime of the axles. ? Motor The 4 cylinder Kubota motor is the heart of the Pitbull X SERIES ? Extremely suitable for working in old stables or when low areas have to be passed. ? Extremely suitable for work where safety is guaranteed. ? Also perfectly suitable for gardeners, road construction or other labours where a mini-loader is needed. ? Due to its compact and light weight design the Pitbull is extremely suitable to be used at any location. ? The low weight of the machine makes sure there are no limitations on transport of the machine. ? Available in many different colours. ? Always with 4-point safety roof and telescopic safety brackets. ? Easy to use and very accessible, also for maintenance. ? Only A-components from known brands are used, Kubota, Dana Spicer and Linde, this guarantees A quality

Topputrustad demonstrationsmaskin - finns för omgående leverans Kraftfull 4-cylindrig Kubota V1505 26 hk, underhållsvänlig, alla filter under motorhuven, stel ramled  = mycket stabil vid svängning, Flytande bakaxel, elektrisk parkeringsbroms. Oljebadsbromsar, 45% lås för fram/bakaxel, 12 tn Dana Spicer-axlar, brottkraft och stabilisatorfunktion, PZ lyftbomsoptimerad Kardanaxel med skivbroms, 0 – 24 km/h, Euro quick release-platta, Däck Trelleborg 400/50-15 T463,
Pitbull Headlights Front  450-908-010 Pitbull  LED  Light Bar Front  450-908-008  Pitbull  LED Light/Indicator Set Bak  och  4 block  450-908-003-006  1 x Mekanisk och 1 elektrisk block  Pitbull Free Return 450-908-004-001  Pitbull  Bucket  140  cm  450-908-037  Pitbull  3  Block  Holding  Function  450-908-044
